Description

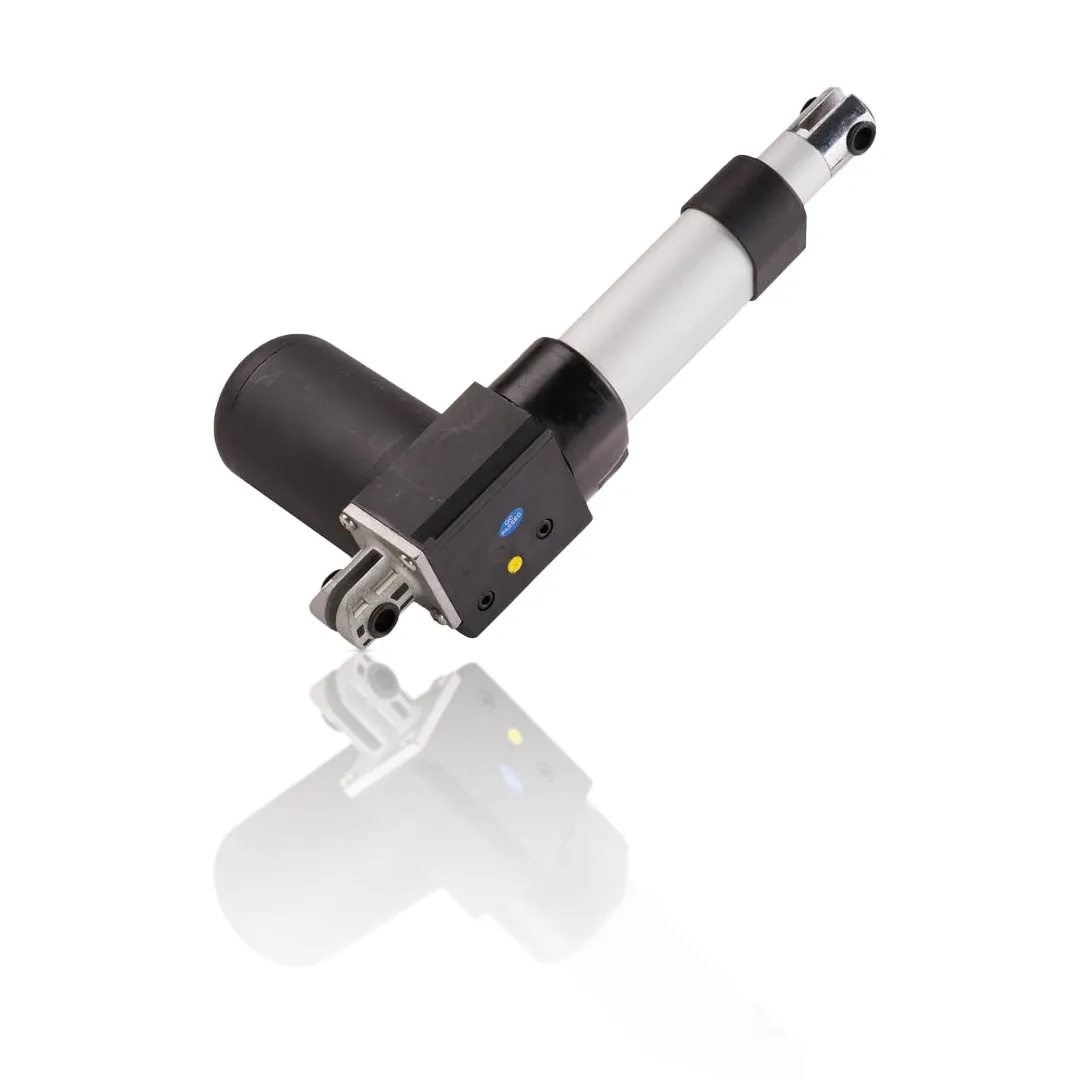

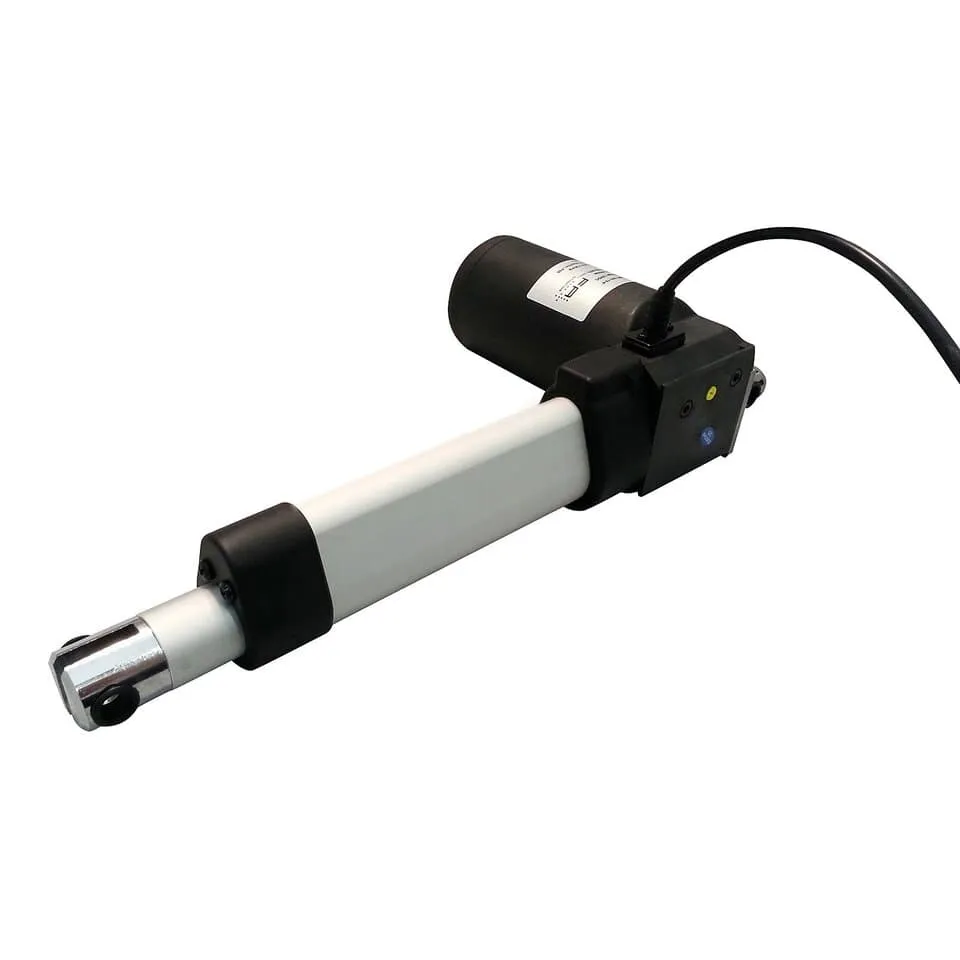

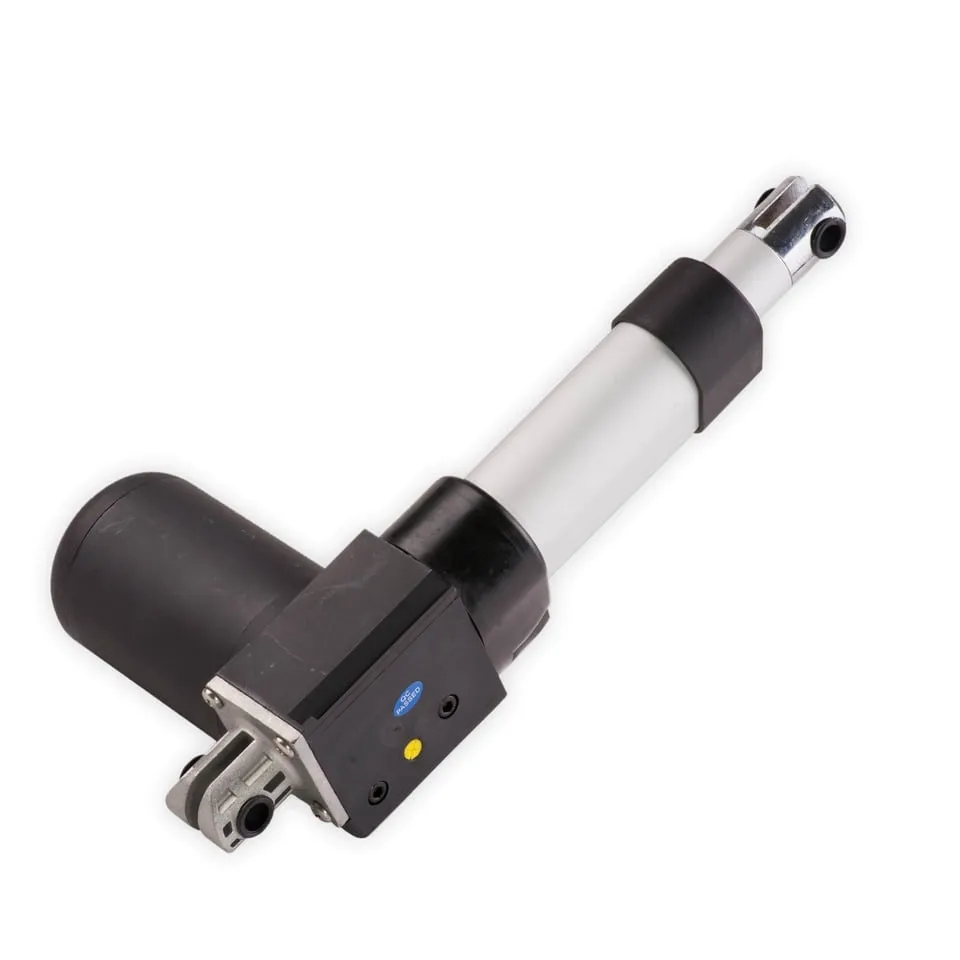

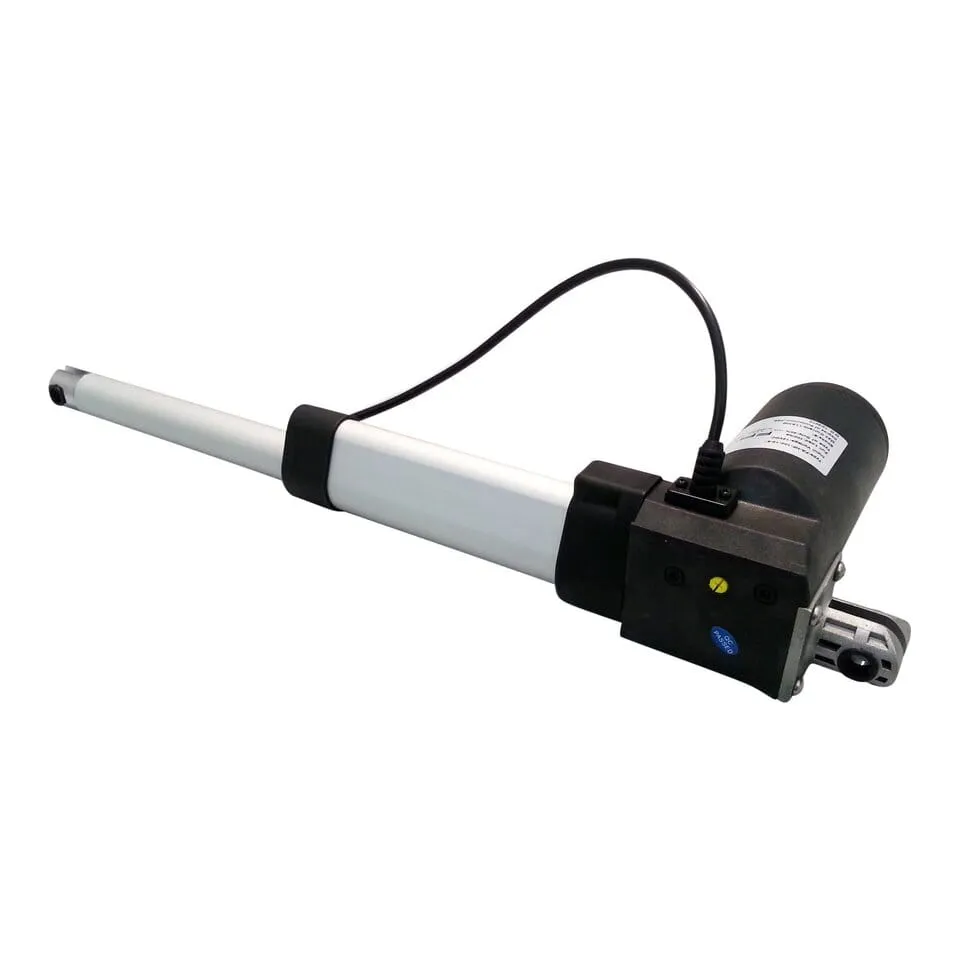

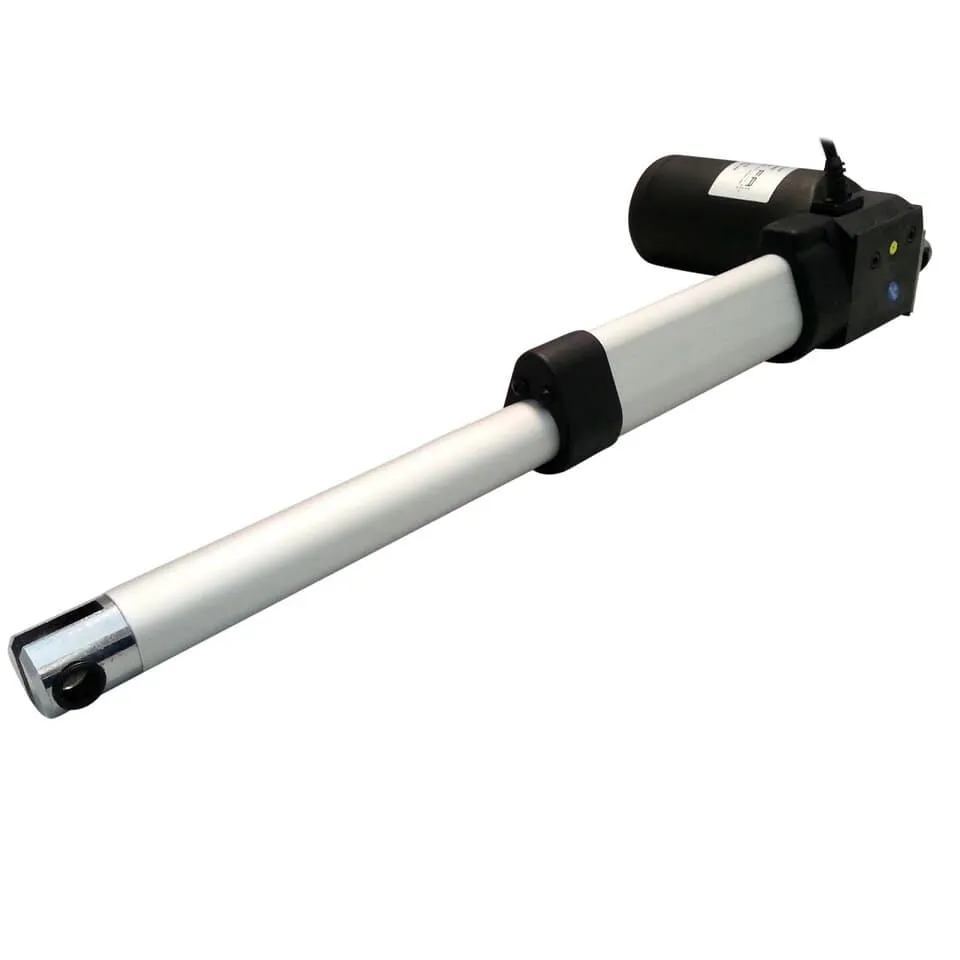

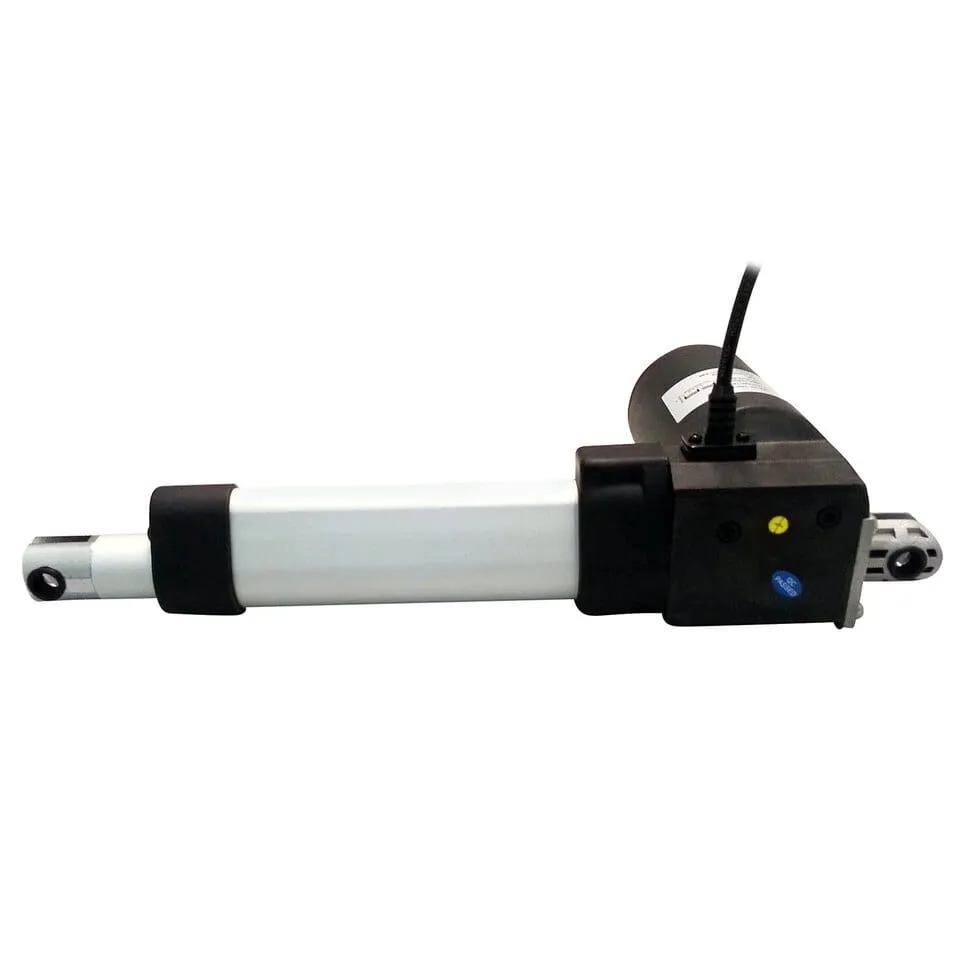

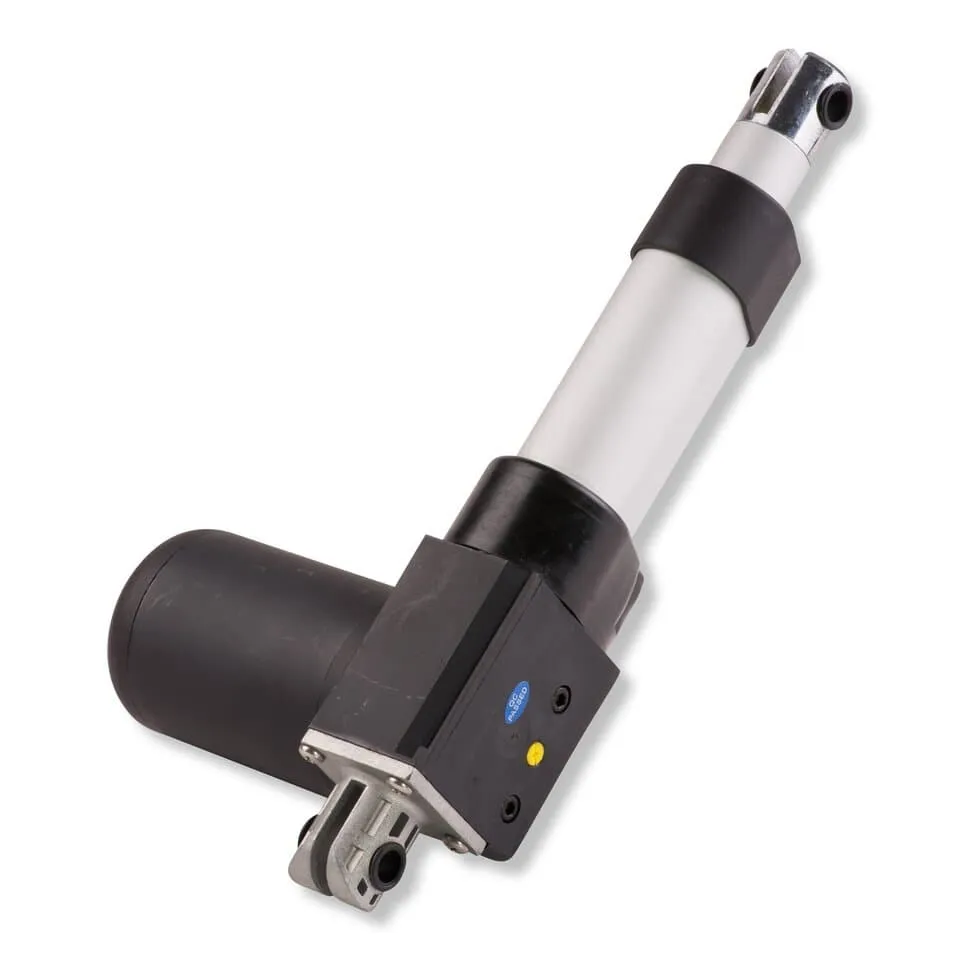

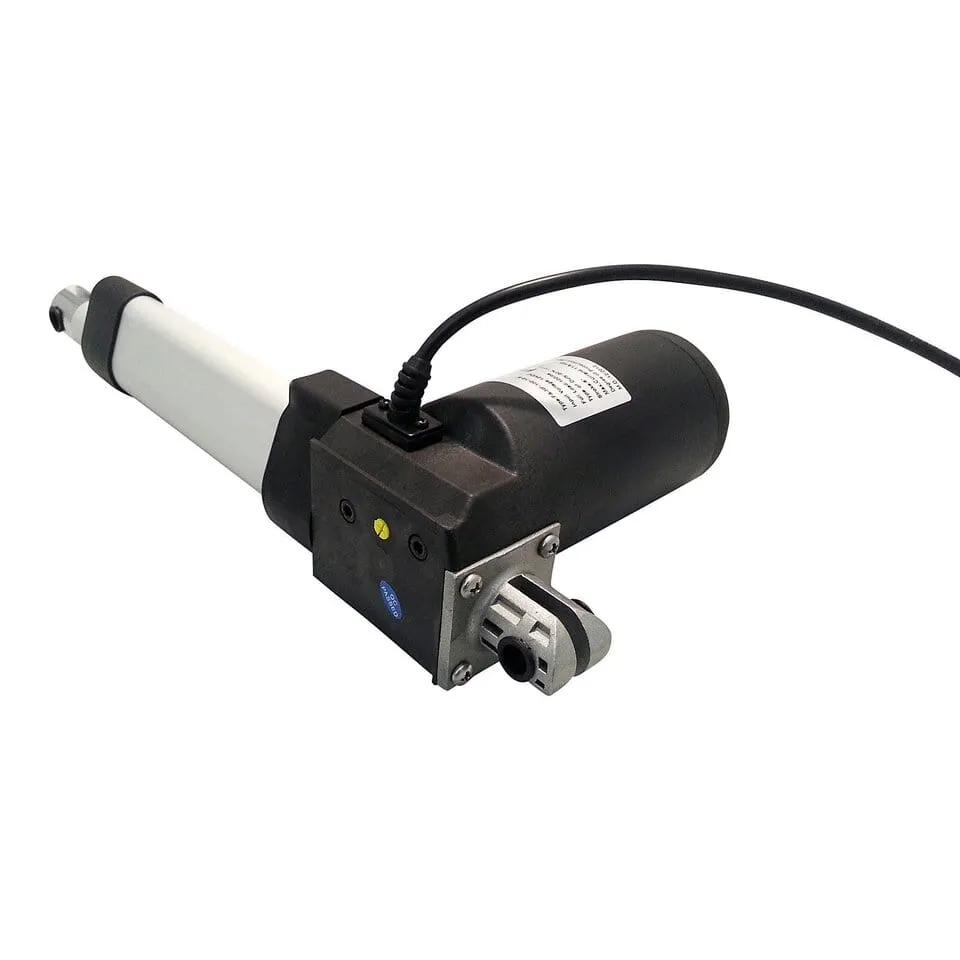

These Actuators have a worm gear drive mechanism that reduces friction thus offering a better duty cycle and life span. Deluxe Rod Actuators are great for home automation projects where low noise is a requirement. At 3” per second with 100 lbs. of force, these actuators are great for projects that require fast movement for heavier loads.
CAD models of this actuator can be found under . For further information review the specifications and technical drawings down below or visit our for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.
Accessories sold separately include: - - -
*Due to the drive gearing method, this actuator will back drive under higher loads with no power applied to the actuator. Using a gas spring of the correct rating will alleviate the back drive. Another option is using an SPDT relay to work as a back-EMF brake. See for more information
Specifications
| Model | FA-HF-100-12-XX |
| Dynamic Force | 100 lb. |
| Static Force | 180 lb. |
| Speed ("/S) no load | 3"per sec at no load, 2.5" at full load |
| Duty Cycle | 20% |
| IP Rating | 66 |
| Screw Type | Worm Gear |
| Input | 12v DC |
| Draw at Full Load | 10 Amps |
| Feedback | None |
| Synchronous Capability | None, 5-10% variation in speed |
| Operational Temperature | -26°C/65°C (-15°F/150°) |
| Limit Switch | Built-in (factory preset) - For adjustable limit-switch linear actuators try our new |
| Certifications | CE |
| Bracket(s) | or Brackets |
| Cable Length | 1.5 feet |
| Wire Size | 18AWG |
| Stroke | Retracted Length | Extended Length | Weight | STEP files |
| 3" | 10.88" | 13.88" | 5.0 lbs | |
| 6" | 13.88" | 19.88" | 5.5 lbs | |
| 9" | 16.88" | 25.88" | 5.9 lbs | |
| 12" | 19.88" | 31.88" | 6.3 lbs | |
| 15" | 22.88" | 37.88" | 6.5 lbs | |
| 18" | 25.88" | 43.88" | 7.25 lbs | |
| 24" | 31.88" | 55.88" | 8.1 lbs | |
| 30" | 37.88" | 67.88" | 9.0 lbs | |
| 32" | 39.88" | 71.88" | 9.3 lbs | |
| 34" | 41.88" | 75.88" | FA-HF-100-12-34 | |
| 36" | 43.88" | 79.88" | 9.9 lbs |
Use MB3 or MB3U brackets for these actuators.
Technical Drawings
Looking for a 3D model of this actuator? Email [email protected], we will be happy to email it to you
Performance Graph
Brake with SPDT Relay diagram
Product Video
Comparison Video
3D Model Downloads (.STEP)
Wiring Diagram
Click here to view our wiring diagram generator to help you set up your actuator system
