Description
These High Speed Linear Actuators offer fast speeds in many stroke options. The trade-off for achieving these higher speeds is always lower force; so if you need more force, try a slower actuator as an alternative (like our Deluxe). These are great for applications where you want to move something quickly, but force is not an issue.
CAD models of this actuator can be found under . For further information review the specifications and technical drawings down below or visit our for instructions on how to use this actuator with switches, remotes and speed controllers.

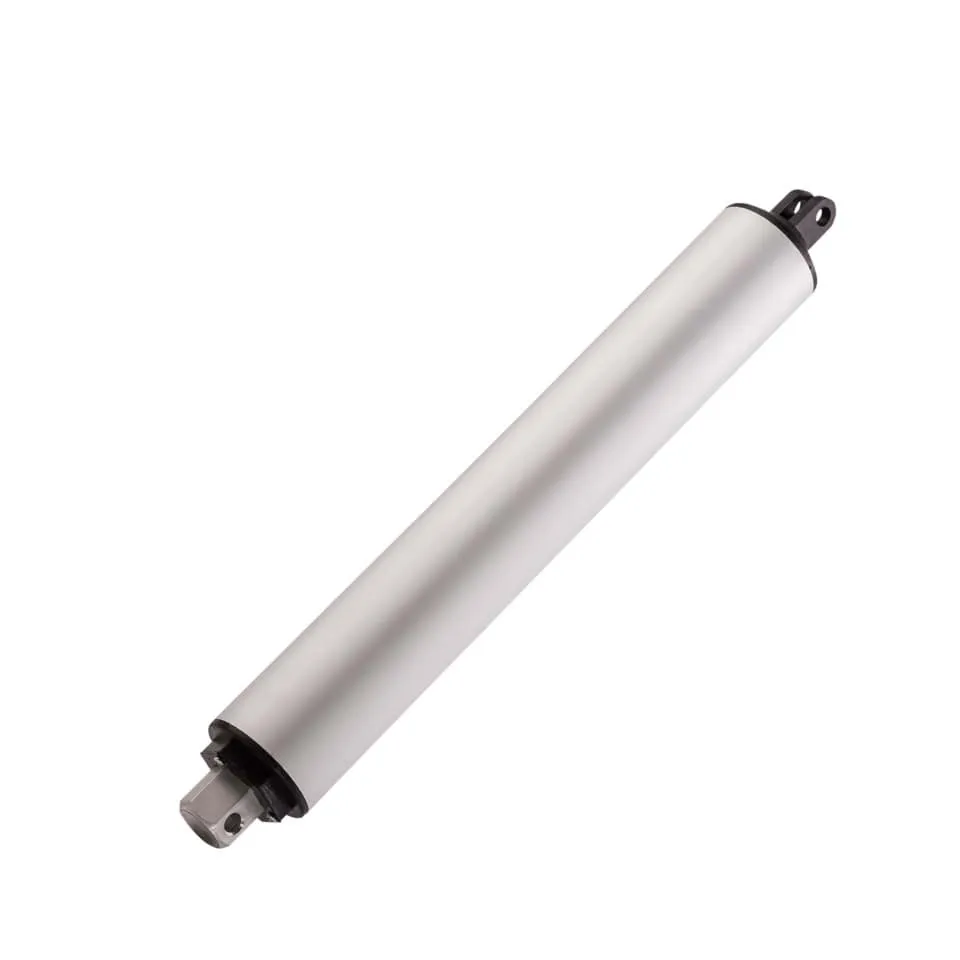

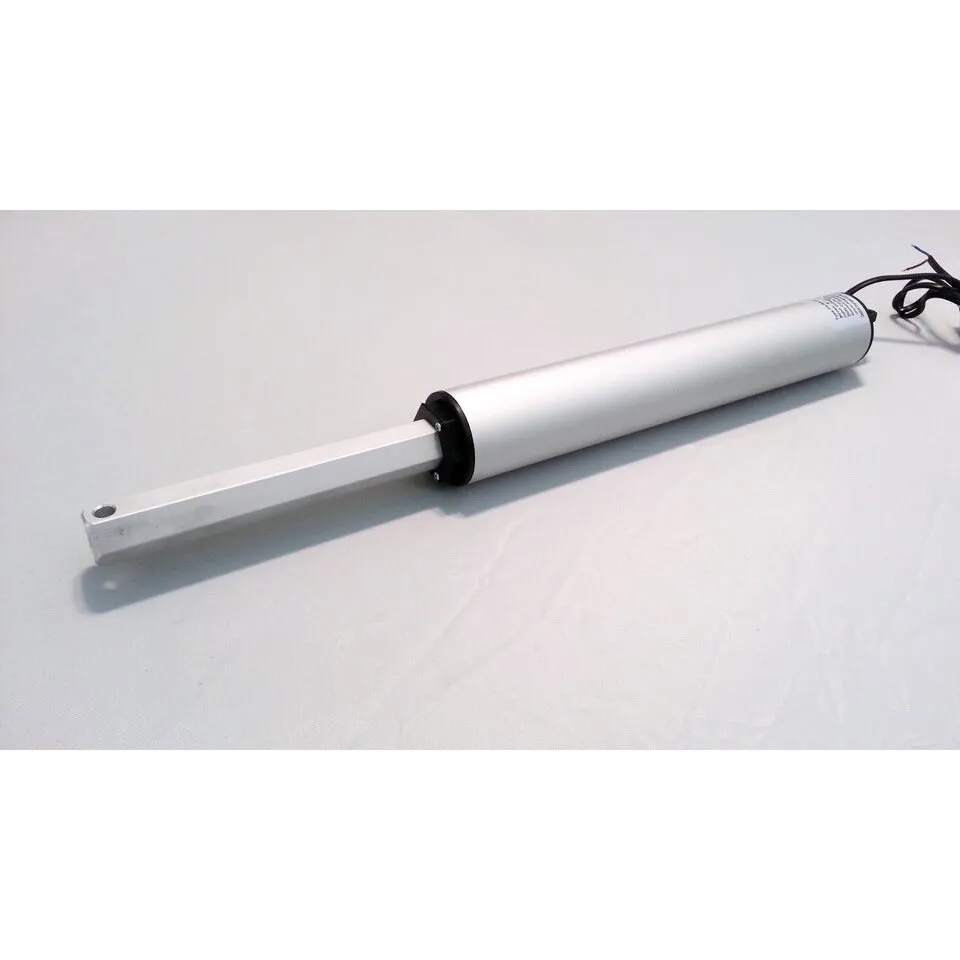

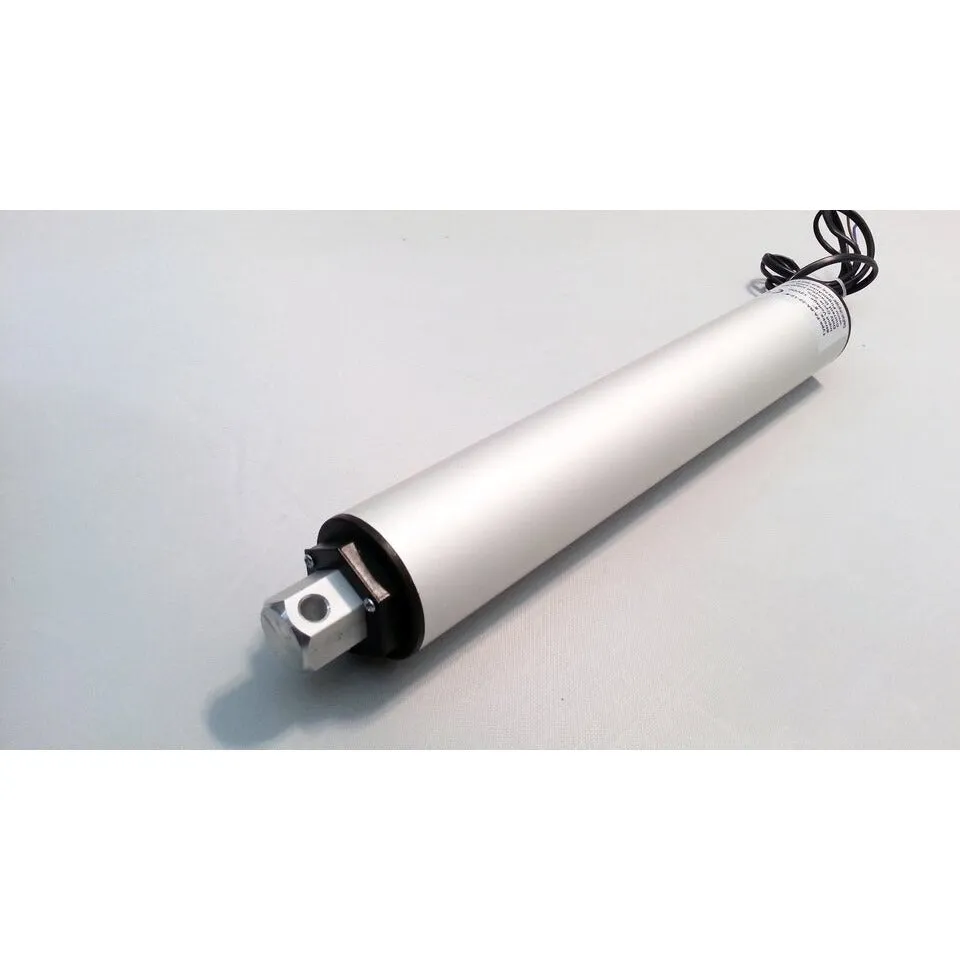

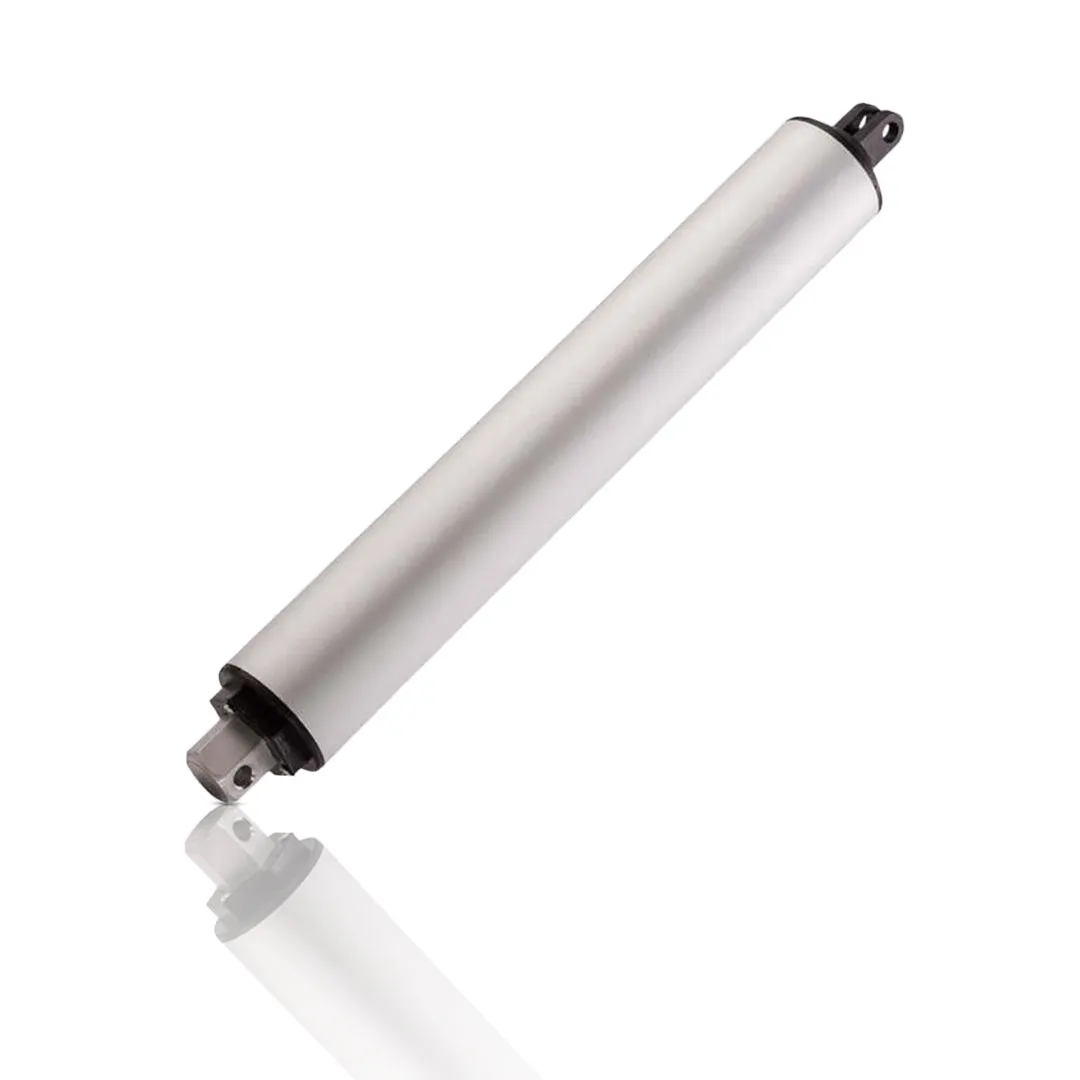

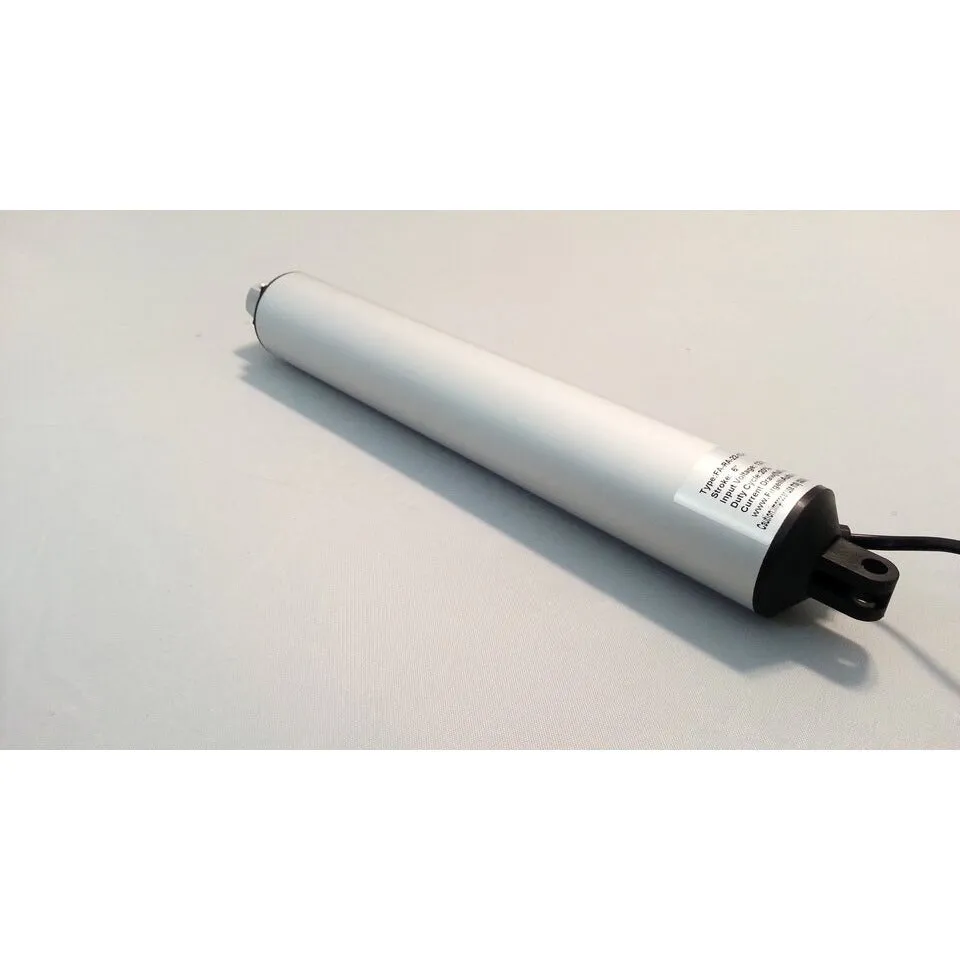

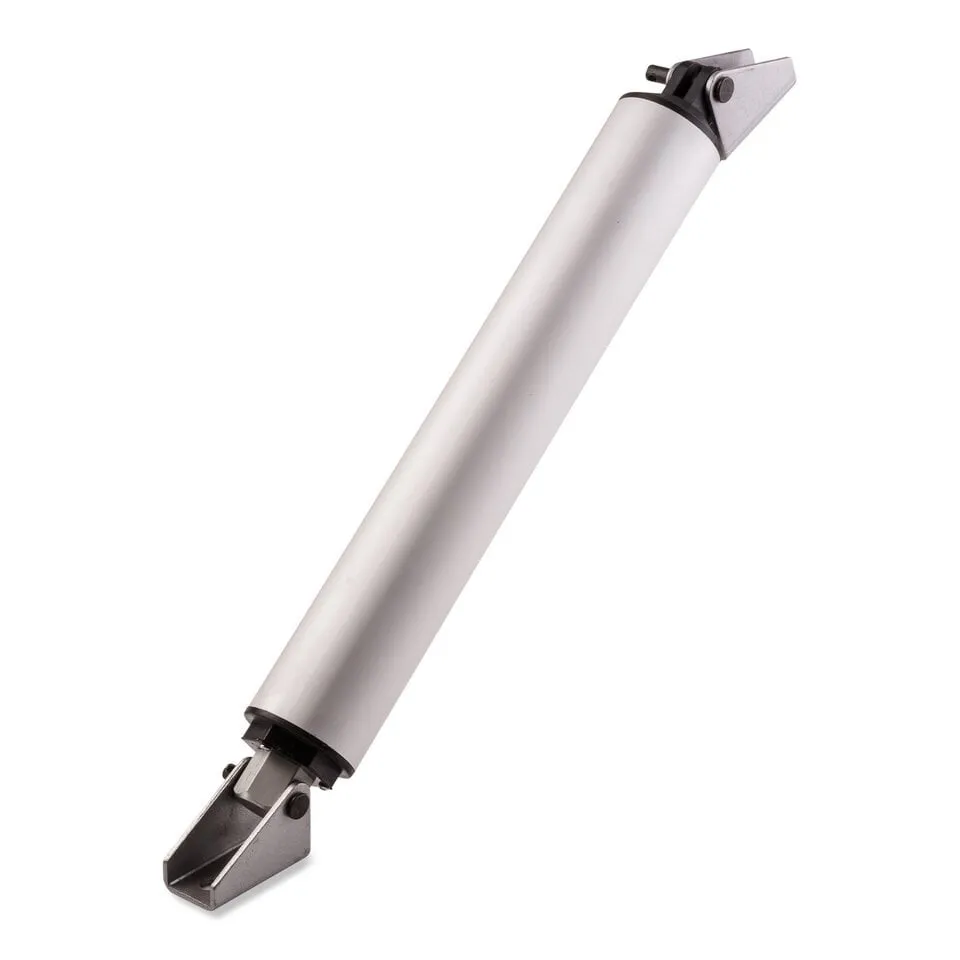

To adapt to the changing landscape of modern industry, the High Speed Actuator line was developed. Moving at a staggering 9 inches per second under no load, and 4.5 inches per second when at full capacity, this line of linear actuators are ready to serve any high speed application with ease. There is one variant of High Speed Actuator which we offer, which has a dynamic force of 22 lbs. and a static force of 44 lbs. Featuring factory built-in limit switches, an aluminum casing to shed weight, and first rate internal materials to keep noise and vibration as low as possible. All this bundles together to serve up quiet, smooth, and reliable operation. As with all of our actuators, this line up comes with clevis mounting points on either end for simple and quick installment with the use of the .
Specifications
| Model | FA-RA-22-12-XX |
| Dynamic Force | 22 lb. |
| Static Force | 44 lb. |
| Speed ("/S) | 4.5" (9" at no load) |
| Current | 5A max |
| Duty Cycle | 20% at 100% load, 50% at 25% of load , absolute max. 5 mins continuous use |
| IP Rating | 54 |
| Input | 12v DC |
| Feedback | None |
| Synchronous Capability | None, 5-10% variation in speed |
| Noise Level | 57-64 dbA @ 1' |
| Operational Temperature | -26°C/65°C (-15°F/150°) |
| Limit Switch | Built-in (factory preset) |
| Safety Certifications | CE, ROHS |
| Cable Length | 3 feet |
| Wire Size | 18AWG |
| Bracket(s) |
| Stroke | Retracted Length | Extended Length | Weight | Step File |
| 2" | 11.5" | 13.5" | 3.5 lbs | |
| 4" | 13.5" | 17.5" | 3.75 lbs | |
| 6" | 15.5" | 21.5" | 4 lbs | |
| 8" | 17.5" | 25.5" | 4.25 lbs | |
| 10" | 19.5" | 29.5" | 4.6 lbs | |
| 12" | 21.5" | 33.5" | 4.8 lbs | |
| 18" | 27.5" | 45.5" | 6.0 lbs | |
| 24" | 33.25" | 61.25" | 6.75 lbs | |
| 28" | 37.25" | 65.25" | 7.25 lbs | |
| 32" | 41.25" | 69.25" | 7.75 lbs | |
| 36" | 44.5" | 80.5" | 8.50 lbs | |
| 38" | 46.5" | 84.5" | 9 lbs. |
Technical Drawings
Performance Graph
3D Model Downloads (.STEP)
Wiring Diagram
Click here to view our wiring diagram generator to help you set up your actuator system
