Wolf Tooth headsets are machined here in our Minnesota shop with aircraft-grade 6061 aluminum. They are designed to be lightweight, strong, and durable. Our headsets have three levels of industry-leading custom sealing to protect bearings from the elements and prolong the life of the headset. Available in a variety of colors. These ZS headsets are for frames with internal bearing cups that are pressed into the frame. Premium Headsets with Enduro stainless steel bearings have a lifetime warranty.

Compatibility

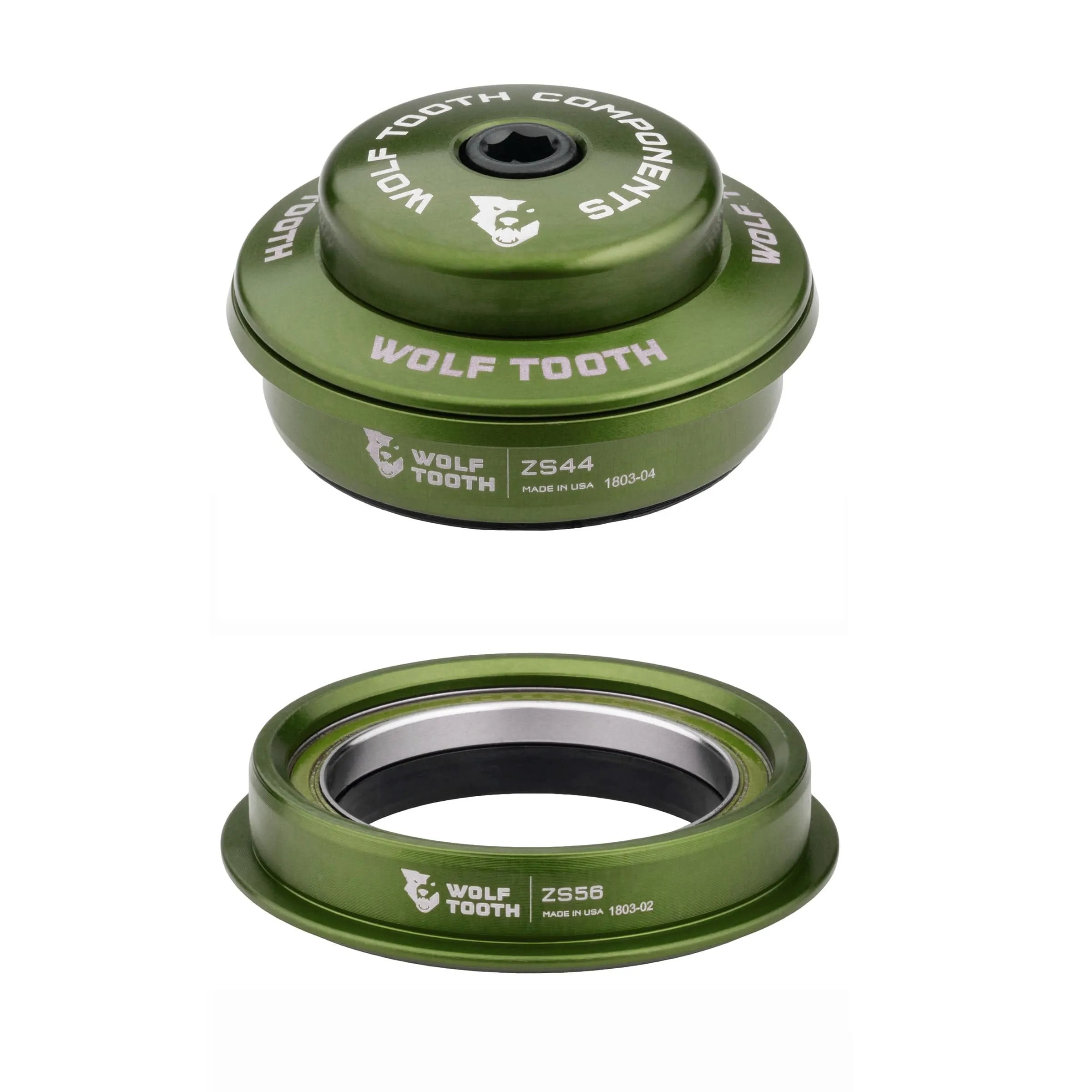

• Any frame that uses ZS (Zero Stack) headsets with 44mm upper and 56mm lower head tube inner diameter.
• Uppers and lowers sold together as a set.
• Enduro stainless steel sealed bearings included on both the upper and lower.
• Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a  (sold separately). (Never use a star nut on a carbon steerer tube).

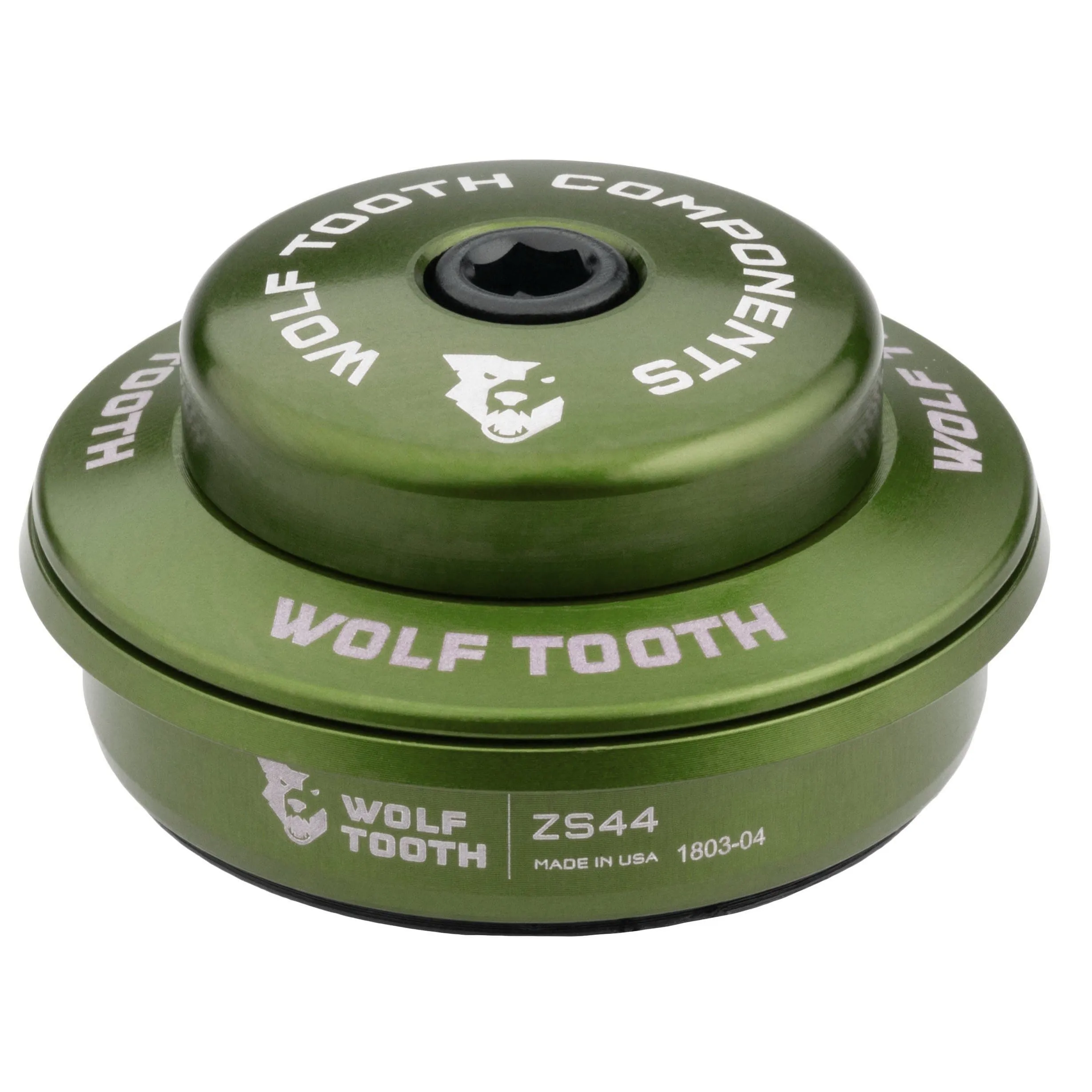

Upper assembly features:

• Ultralight stem cap with integrated spacer plus an aluminum bolt and a star nut.
• 6 mm stack height top cover only
• O-ring seal prevents water intrusion around steerer tube.
• Custom-molded upper lip seal provides additional protection for upper bearing.

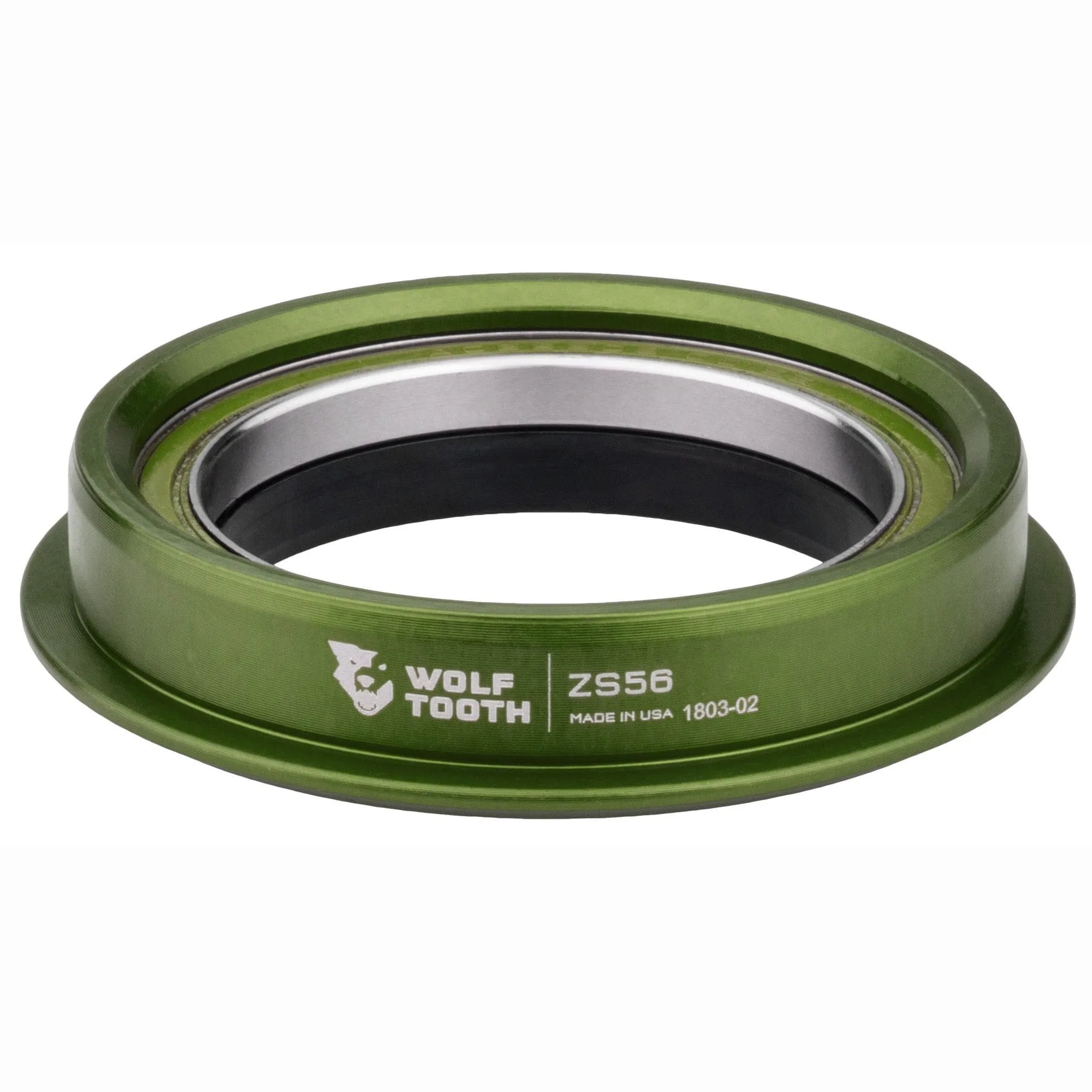

Lower assembly features:

• Custom-molded dual-lip seal on the crown race protects lower bearing in the toughest conditions.
• All components precision machined in-house at Wolf Tooth from aircraft grade aluminum to ensure the highest level of quality.
• Service and additional parts available.

Recommendations

The will help avoid damaging the crown race seals.

Related Products

Tech Specs

Weight: 129-136g
Material: 6061 aluminum
Stem Cap Bolt Torque Spec: 2-3 Nm with light grease on threads only

Made in the USA
