Comes with:
- Processors - 1 x Intel® Xeon® E5-2609v4
- Memory - 8GB (1x8GB Registered DIMMs, 2400 MHz)
- Network Controller - HPE Embedded Dual Port 361i Adapter Network Interface
- Storage Controller - HPE H240 FIO Smart Host Bus Adapter
- Hard Drive - None ship standard
- Internal Storage - 8 SFF HDD Bays
- Optical Drive Bay - 1; (Optional: DVD-ROM, DVD-RW)
- Optical Drive -
- PCIe Slots - 3 Standard (1-FL/FH, 2-FH/HL)
- Power Supply - (1) HPE 550W FIO Power Supply
- Fans - 2 hot swap fans, non-redundant
- Management - iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials (optional), iLO Scale-out (optional only for DL), iLO Advanced (optional)
- Energy Start - N/A
- Form Factor - Rack (2U), HPE Easy Install Rails

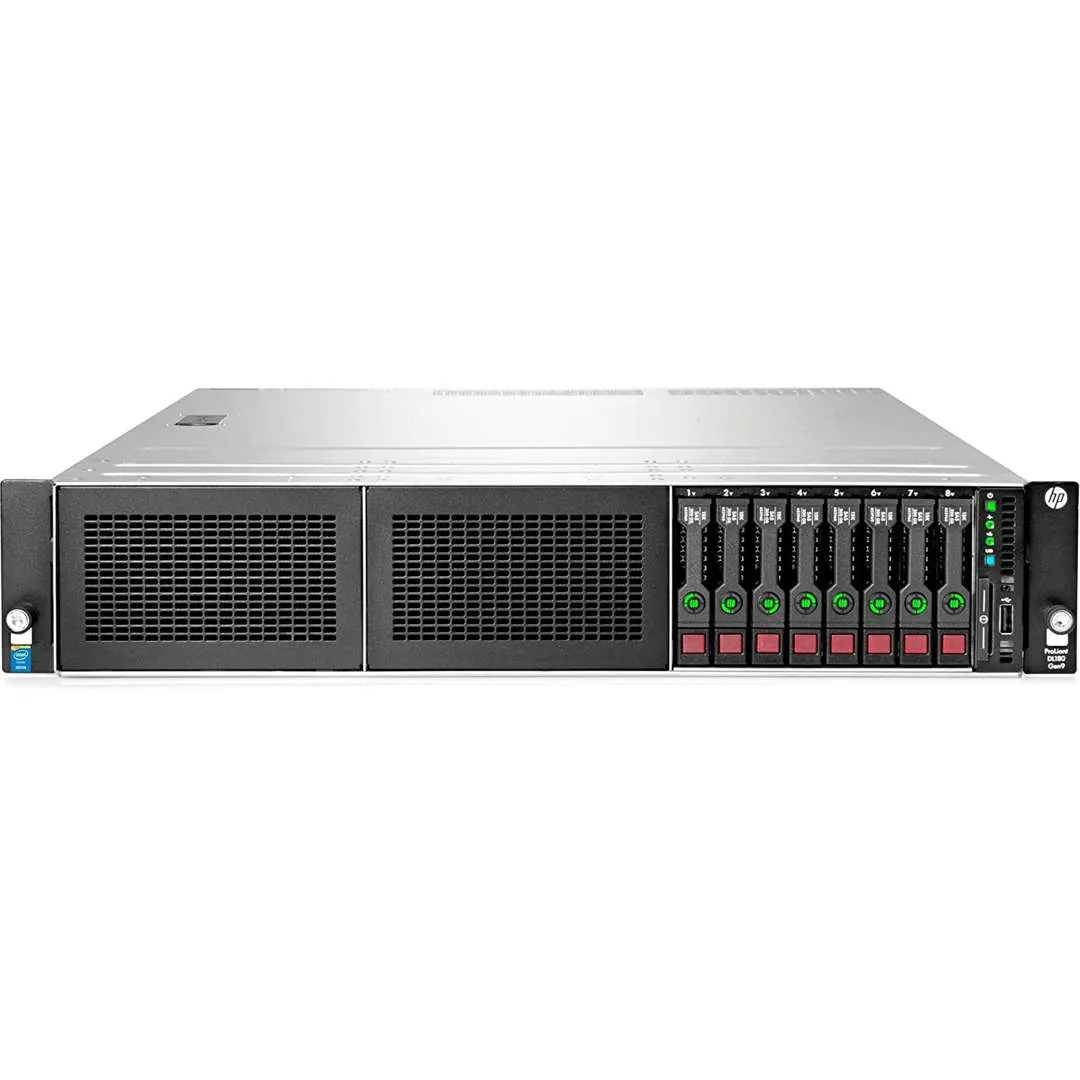

Designed with just the right balance of scalability and performance, the refurbished HP ProLiant DL180 Gen9 Server is an optimized 2U model that helps growing businesses, data centers, and service providers alike manage their infrastructures more efficiently. With high availability and efficiency for dense storage applications, this server allows for more agile management that enables accelerated service delivery.
What's New for DL180 Gen9
- Intel Xeon E5-2600v4 processor support (Up to 120 W)
- New 900 W/240 V power supply
- HPE Trusted Platform Module (TPM) 2.0
- New HDD offerings
- Support for ClearOS – an easy to use OS with an application marketplace
Scalability and Performance To Meet the New Standard of Growing Data Center Needs

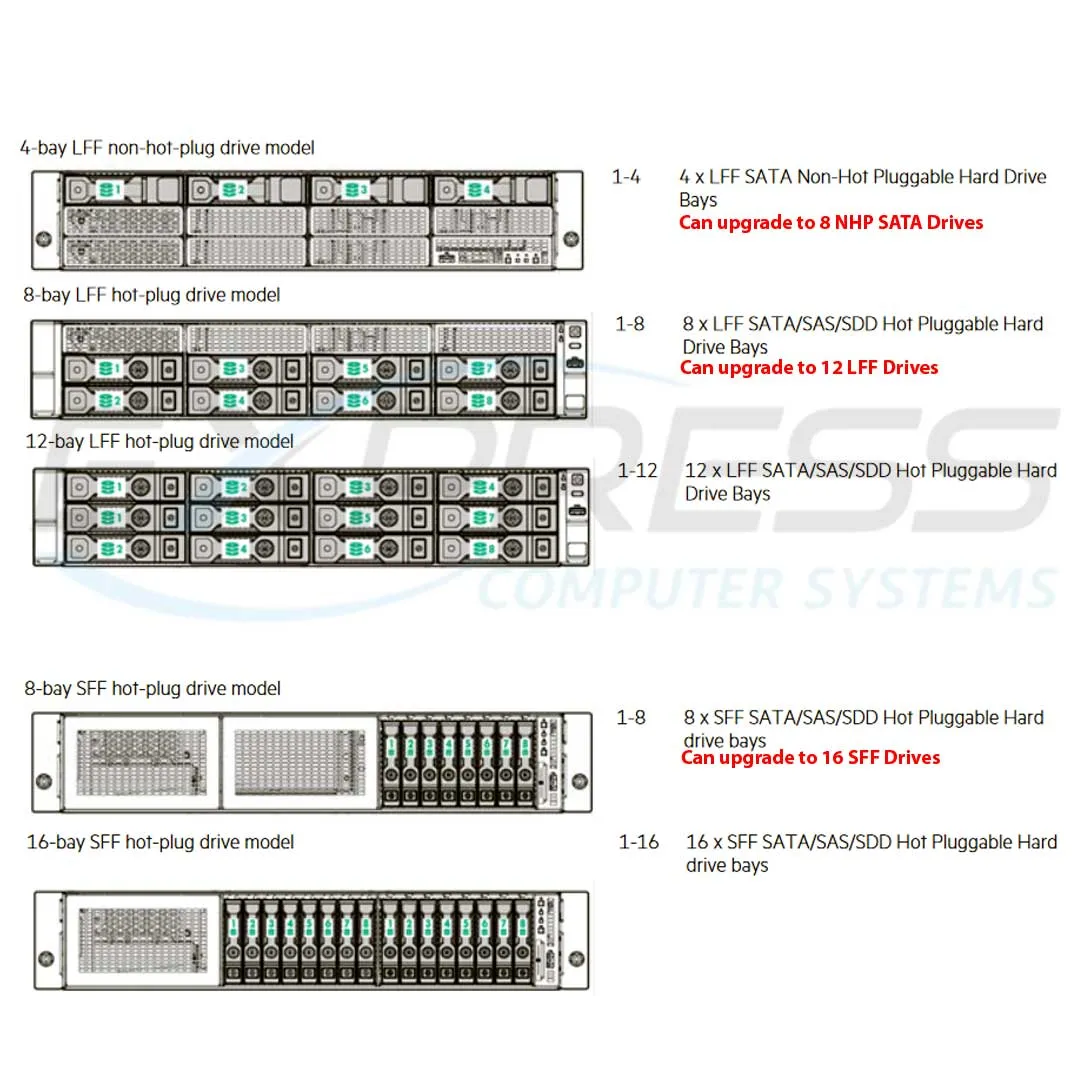

The HPE ProLiant DL180 Gen9 Server provides ample storage capacity on demand with drive configurations ranging from (4) to (12) Large Form Factor (LFF) or (8) to (16) Small Form Factor (SFF) HPE SmartDrives, with flexibility of LFF non-hot plug (NHP) options at the right economics.
It supports up to two Intel Xeo processor E5-2600 v3/v4 processors with up to (12) cores and (16) DIMM slots of HPE DDR4 SmartMemory offering improved performance and efficiency.
Comes standard with 2x1GbE and choice of HPE FlexibleLOM or PCIe standup 1GbE or 10GbE Adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
Up to six PCIe 3.0 riser slots to support a wide range of GPUs and networking cards offering increased IO bandwidth and seamless expandability.
Embedded SATA HPE Dynamic Smart Array B140i Controller for boot and data. Choice of HPE Smart Array Controllers with increased performance, data availability with 12 Gb/s SAS technology or HPE Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.
